Hanger Bolts
Hanger Bolts
Zinc Plated Steel

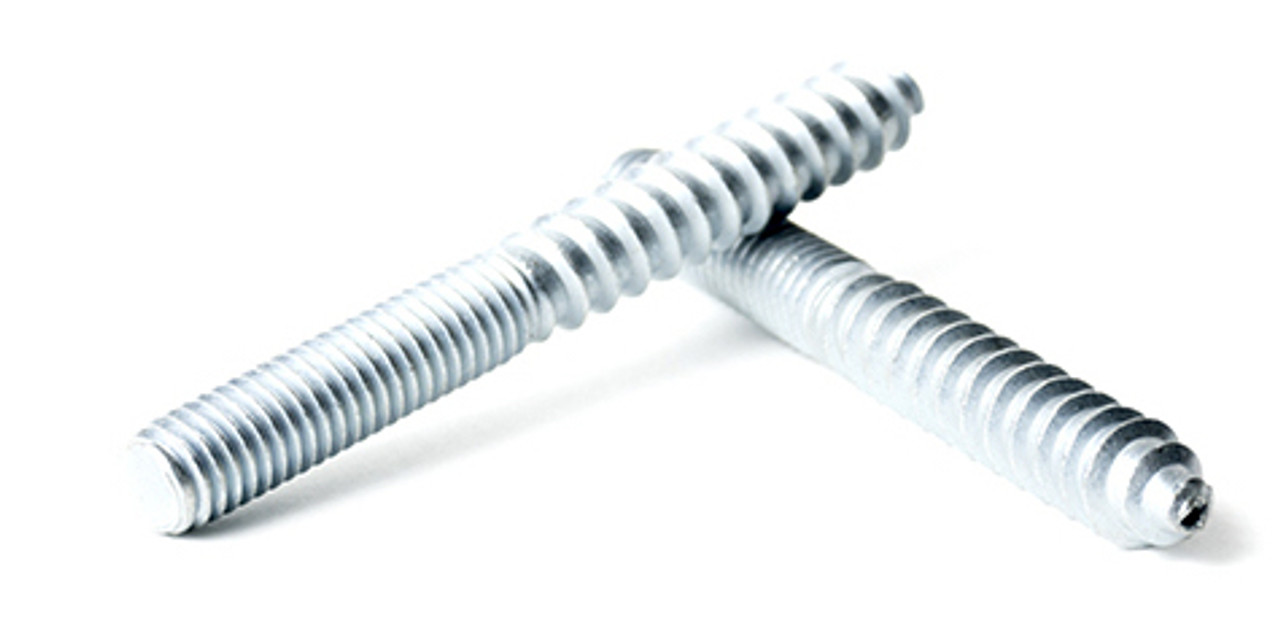

Hanger Bolts are practically a Wood Screw (Lag) Thread on one end and a Machine Screw (Bolt) Thread on the other.
Designed to hang material from wooden structures. The lag is wrenched into the wood and the assembly is completed after applying a nut.
Used for suspending electrical wiring and sheet metal with the use of Threaded Rod and Rod Coupler Nuts.
|
Hanger Bolts (Coach Bolts) Specifications |
||||
| C | A | B | D | |
| Diameter / Thread | Overall Length | Machine Thread Length | Wood Screw Length | Center Space |
| 3/16 (10-24) | 1" | 3/8" | 5/8" | - |
| 1-1/4" | 5/8" | 5/8" | - | |
| 1-1/2" | 5/8" | 7/8" | - | |
| 2" | 1" | 1" | - | |
| 2-1/2" | 1" | 1-1/2" | - | |
| 3" | 1-1/2" | 1-1/2" | - | |
| 3-1/2" | 1-1/2" | 2" | - | |
| 1/4-20 | 1" | 3/8" | 5/8" | - |
| 1-1/2" | 5/8" | 7/8" | - | |
| 2" | 1" | 1 | - | |
| 2-1/4" | 1" | 1-1/4" | - | |
| 2-1/2" | 1" | 1-1/2" | - | |
| 3" | 1-1/2" | 1-1/2" | - | |
| 3-1/2" | 1-1/2" | 2" | - | |
| 4" | 2" | 2" | - | |
| 4-1/2" | 1-1/8" | 3" | 3/8" | |
| 5" | 1-3/8" | 3" | 5/8" | |
| 6" | 1-1/2" | 3" | 1-1/2" | |
| 5/16-18 | 1-1/2" | 5/8" | 7/8" | - |
| 2" | 1" | 1" | - | |
| 2-1/2" | 1" | 1-1/2" | - | |
| 3" | 1-1/2" | 1-1/2" | - | |
| 3-1/2" | 1-1/2" | 2" | - | |
| 4" | 2" | 2" | - | |
| 4-1/2" | 1-1/8" | 2" | 3/8" | |
| 5" | 1-3/8" | 3" | 5/8" | |
| 6" | 1-1/2" | 3" | 1" | |
| 1-1/2" | 3" | 1-1/2" | ||
| 3/8-16 | 1-1/2" | 1/2" | 1" | - |
| 2" | 1" | 1" | - | |
| 2-1/2" | 1" | 1-1/2" | - | |
| 3" | 1-1/2" | 1-1/2" | - | |
| 3-1/2" | 1-1/2" | 2" | - | |
| 4" | 2" | 2" | - | |
| 4-1/2" | 1-1/8" | 3" | 3/8" | |
| 5" | 1-3/8" | 3" | 5/8" | |
| 6" | 1-1/4" | 3" | 1-3/4" | |
| 8" | 2-1/2" | 3" | 2-1/2" | |
| 10" | 2-1/2" | 3" | 4-1/2" | |
| 12" | 2-1/2" | 3" | 6-1/2" | |
| 1/2-13 | 3" | 1" | 2" | - |
| 3-1/2" | 1-1/2" | 2" | - | |
| 4" | 2" | 2" | - | |
| 5" | 2" | 3" | - | |
| 6" | 2-1/2" | 3" | 1/2" | |
| 8" | 2-1/2" | 3" | 2-1/2" | |
| 10" | 2-1/2" | 3" | 4-1/2" | |
| 12" | 2-1/2" | 3" | 6-1/2" | |
