Epoxy Anchors

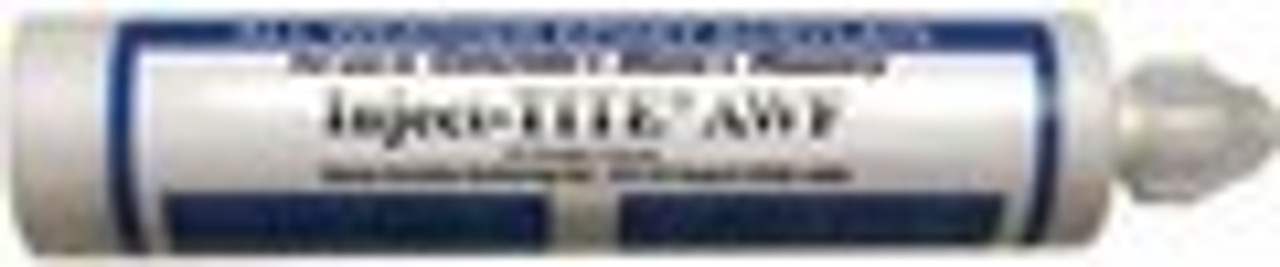

The Inject-TITE (AWF) All Weather Formula is an acrylate anchoring system made for temperatures ranging from -15°F to 120°F. The AWF is a styrene-free formula that allows for use in a wide range of applications like bonding threaded rod and reinforcing bar hardware into drilled holes in solid (or hollow) concrete base materials. It won’t shrink or sag, eliminating expansion forces and avoiding unwanted forces in the joint. It can be applied in wet or damp holes and can be used in areas with severe weather conditions.
Threaded Rod or Threaded Studs in Concrete: Number Holes Per 10.1 oz Cartridge
|
Size (in.) |
Hole Size (in.) |
Embedment Depth (inches) |
||||||||||||||||||
|
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
||
|
3/8 |
7/16 |
81 |
54 |
41 |
33 |
28 |
23 |
21 |
19 |
17 |
15 |
13 |
13 |
12 |
11 |
10 |
10 |
10 |
9 |
9 |
|
1/2 |
9/16 |
58 |
39 |
29 |
23 |
20 |
17 |
14 |
12 |
12 |
11 |
10 |
9 |
8 |
8 |
8 |
7 |
7 |
7 |
6 |
|
5/8 |
3/4 |
30 |
20 |
15 |
12 |
10 |
9 |
8 |
7 |
6 |
6 |
6 |
4 |
4 |
4 |
3 |
3 |
3 |
3 |
3 |
|
3/4 |
7/8 |
24 |
15 |
12 |
10 |
8 |
7 |
6 |
6 |
4 |
4 |
4 |
3 |
3 |
3 |
3 |
3 |
3 |
2 |
2 |
|
7/8 |
1 |
20 |
13 |
10 |
8 |
7 |
6 |
6 |
4 |
4 |
3 |
3 |
3 |
3 |
3 |
2 |
2 |
2 |
2 |
2 |
|
1 |
1-1/8 |
17 |
11 |
8 |
7 |
6 |
4 |
4 |
3 |
3 |
3 |
3 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
|
1-1/8 |
1-1/4 |
14 |
10 |
8 |
6 |
6 |
4 |
3 |
3 |
3 |
3 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
|
1-1/4 |
1-1/2 |
12 |
9 |
7 |
6 |
4 |
3 |
3 |
3 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
1 |
1 |
|
1-1/2 |
1-5/8 |
10 |
7 |
6 |
4 |
3 |
3 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
1 |
1 |
1 |
1 |
1 |
1 |
