1/4 x 1-3/4 Stud Anchor 18-8 Stainless
SKU: XWEJ14134
$1.460eachBulk Pricing Available
-
1/4 x 2-1/4 Stud Anchor 18-8 Stainless
SKU: XWEJ14214
$1.539eachBulk Pricing Available
-
1/4 x 3-1/4 Stud Anchor 18-8 Stainless
SKU: XWEJ14314
$1.630eachBulk Pricing Available
-
3/8 x 2-1/4 Stud Anchor 18-8 Stainless
SKU: XWEJ38214
$2.700eachBulk Pricing Available
-
3/8 x 2-3/4 Stud Anchor 18-8 Stainless
SKU: XWEJ38234
$3.150eachBulk Pricing Available
-
-
3/8 x 3-3/4 Stud Anchor 18-8 Stainless
SKU: XWEJ38334
$4.032eachBulk Pricing Available
-
-
-
1/2 x 2-3/4 Stud Anchor 18-8 Stainless
SKU: XWEJ12234
$5.847eachBulk Pricing Available
-
1/2 x 3-3/4 Stud Anchor 18-8 Stainless
SKU: XWEJ12334
$6.180eachBulk Pricing Available
-
1/2 x 4-1/4 Stud Anchor 18-8 Stainless
SKU: XWEJ12414
$5.500eachBulk Pricing Available

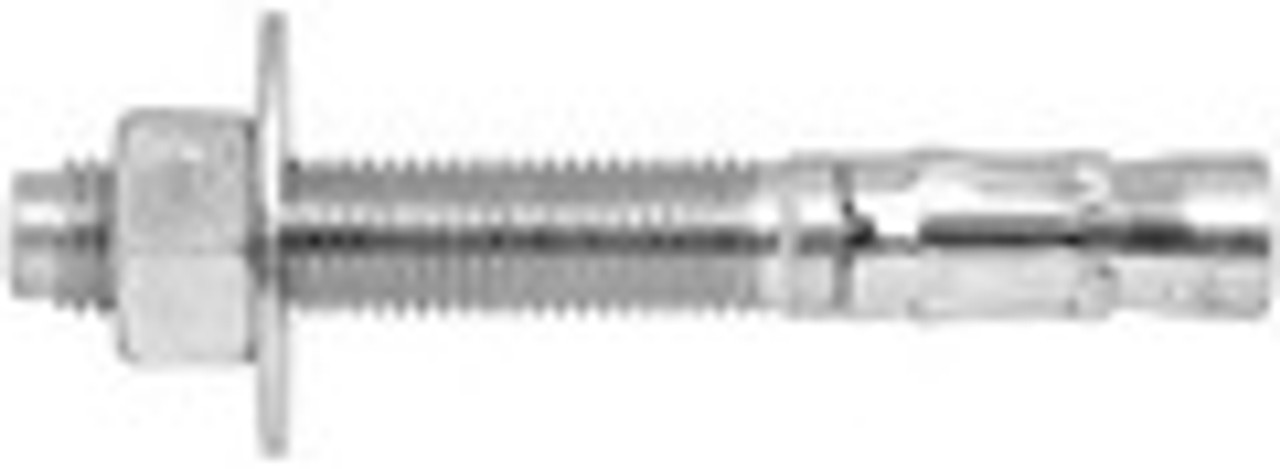

Stud Anchors - Stainless Steel
Stud Anchor Bolts (also known as Wedge Anchors or Quick-Bolts) are used for securing items to Solid Concrete.
When the nut is tightened against the washer (or item being mounted), this action pulls the concrete stud anchor up
and the tapered end expands the sleeve section, wedging it tightly against the sides of the hole.
The hole diameter required is the same as the diameter of the Stud Anchor being used.
Stud Anchors are available in Plated Steel, Galvanized Steel, 18-8 Stainless Steel and 316 Stainless Steel.
Technical Data PDF|
Drill the hole, whose diameter equals the anchor diameter, perpendicular to the work surface. To assure full holding power, do not ream the hole or allow the drill to wobble. Drill the hole deeper than the intended embedment, but not closer than two diameters to the opposite surface of the concrete. |
|
|
A clean hole is necessary for proper performance. Clean the hole using a nylon brush and compressed air. |
|
|
Assemble the nut and washer onto the anchor. Drive the anchor through the material to be fastened at the calculated embedment depth. |
|
|
Tighten the nut, or head, 3 to 5 turns past the hand tight position. Installing with a torque wrench is recommended for optimum performance. Refer to Recommended Setting Torque* in the table below. |
