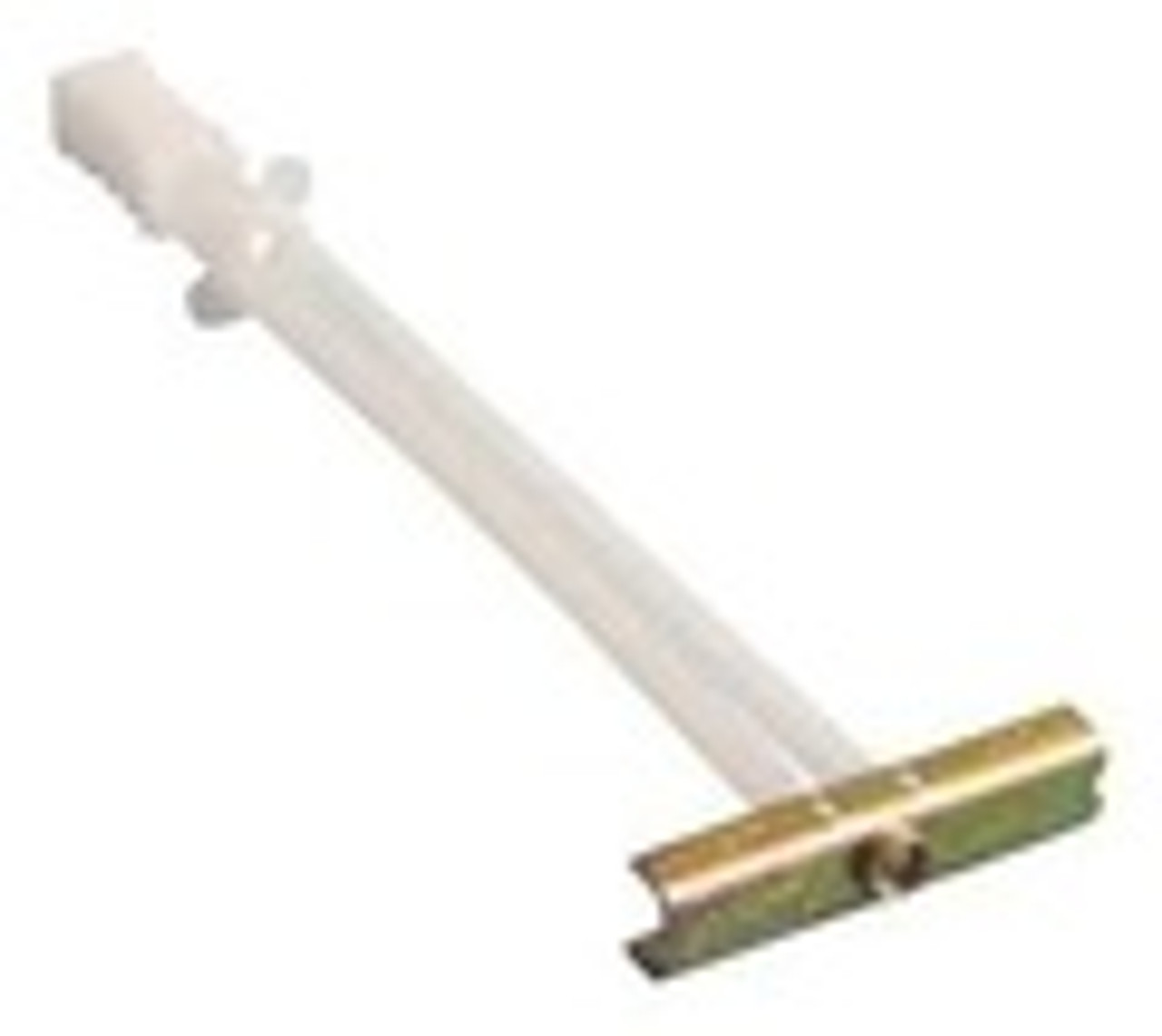

Snap Togglers - Plated Steel

SNAPTOGGLE heavy-duty toggle bolts carry twice the load in a smaller hole than standard wing anchors. A new, patented strap design with sturdier straps and smaller ratchet interval adjusts more precisely and snaps off flush to the surface. SNAPTOGGLE heavy-duty toggle bolts do NOT spin when installed with a screw gun and provide superior holding with metal-to-metal fastening.

Technical Data pdf

Installation Instructions:

Drill appropriate size hole. Hold metal channel flat alongside plastic straps & slide channel through the hole.

Minimum clearance behind wall: only 1-7/8".

Hold ends of straps together between thumb & forefinger and pull toward you until channel rests behind wall.

Ratchet cap along straps with other hand until flange of cap is flush with wall.

Place thumb between straps at wall.

Push thumb side to side, snapping off straps level with flange of cap.

Place item over flange. Insert bolt and tighten until snug against item, then stop.

Use machine screw or bolt to match thread in metal channel.

Showing 1 - 4 of 4

10-24 (3/16) SNAP Toggler (BA)

10-24 (3/16) snap toggler (ba)

TOG1024

$1.050/ea
1/4-20 SNAP Toggler (BB)

1/4-20 snap toggler (bb)

TOG1420

$1.050/ea
3/8-16 SNAP Toggler (BC)

3/8-16 snap toggler (bc)

TOG3816

$4.200/ea
1/2-13 SNAP Toggler (BD)

1/2-13 snap toggler (bd)

TOG1213

$1.950/ea
