The Nutty Company, Inc. – Galvanized Eye Bolts – Technical Data

Part #

Diameter (A) & Shank Length (B)

Outside Eye (C)

Inside Eye (D)

Overall Length (E)

Thread Length (T)

Working Load Limit

(Lbs.)

5:1 Safety

GEB122

1/2" x 2"

2"

1"

4"

1-7/8"

2200

GEB12314

1/2" x 3-1/4"

2"

1"

5-1/4"

1-1/2"

2200

GEB12412

1/2" x 4-1/2"

2"

1"

6-1/2"

2"

2200

GEB126

1/2" x 6"

2"

1"

8"

3"

2200

GEB128

1/2" x 8"

2"

1"

10"

4"

2200

GEB1210

1/2" x 10"

2"

1"

12"

4"

2200

GEB1212

1/2" x 12"

2"

1"

14"

4"

2200

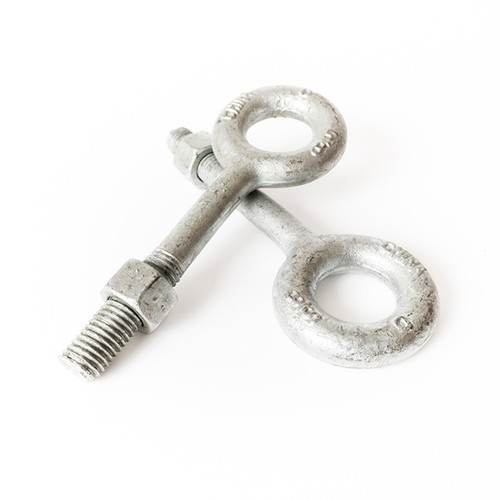

Galvanized Eye Bolts are supplied with a Galvanized Hex Nut
