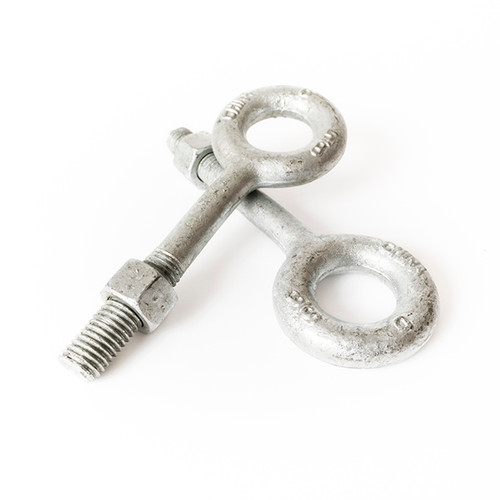

1" Forged Galvanized Eye Bolts

The Nutty Company, Inc. – Galvanized Eye Bolts – Technical Data

Part #

Diameter (A) & Shank Length (B)

Outside Eye (C)

Inside Eye (D)

Overall Length (E)

Thread Length (T)

Working Load Limit

(Lbs.)

5:1 Safety

GEB16

1" x 6"

3-3/4"

2"

9-3/4"

3"

10000

GEB19

1" x 9"

3-3/4"

2"

12-3/4"

4"

10000

GEB112

1" x 12"

3-3/4"

2"

15-3/4"

4"

10000

GEB118

1" x 18"

3-3/4"

2"

21-3/4"

6"

10000

GEB124

1" x 24"

3-3/4"

2"

27-3/4"

6"

10000

Galvanized Eye Bolts are supplied with a Galvanized Hex Nut
