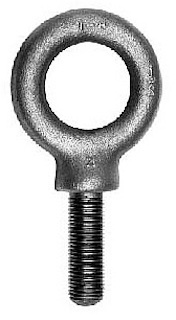

Lifting Eyes - Shouldered Pattern (SAE) Fine

Stock #

Thread Size

A

Shank
Dia.

B

Shank
Length

C

Eye
I.D.

D

Eye
O.D

G

Shoulder Dia.

H

Shoulder
Thickness

J

Loc.

Rated Capacity
Lbs.

LES1428

1/4-28

0.25

1

3/4

1-3/16

0.50

0.12

0.69

500

0.56

0.19

0.81

LES51624

5/16-24

.0312

1-1/8

7/8

1-7/16

0.56

0.12

0.88

900

0.62

0.19

1.00

LES3824

3/8-24

0.375

1-1/4

1

1-21/32

0.62

0.12

1.06

1,300

0.69

0.19

1.19

LES71620

7/16-20

0.44

1-3/8

1-3/32

1-27/32

0.75

0.19

1.19

1,800

0.81

0.25

1.31

LES1220

1/2-20

0.50

1-1/2

1-3/16

2-1/16

0.88

0.19

1.31

2,400

0.94

0.25

1.44

LES91618

9/16-18

0.56

1-5/8

1-9/32

2-9/32

0.94

0.22

1.50

3,000

1.00

0.28

1.62

LES5818

5/8-18

0.625

1-3/4

1-3/8

2-1/2

1.00

0.25

1.59

4,000

1.06

0.31

1.72

LES3416

3/4-16

0.75

2

1-1/2

2-13/16

1.12

0.25

1.72

5,000

1.25

0.31

1.91

LES7814

7/8-14

0.88

2-1/4

1-11/16

3-1/4

1.31

0.31

20.3

7,000

1.44

0.38

2.22

LES114

1-14

1.00

2-1/2

1-13/16

3-9/16

1.50

0.38

2.22

9,000

1.62

0.44

2.41

LES112

1-12**

1.00

2-1/2

1-13/16

3-9/16

1.50

0.38

2.22

9,000

1.62

0.44

2.41

LES11412

1 1/4-12

1.25

3

2-3/16

4-7/16

1.88

0.50

2.84

15,000

2.00

0.56

3.03
