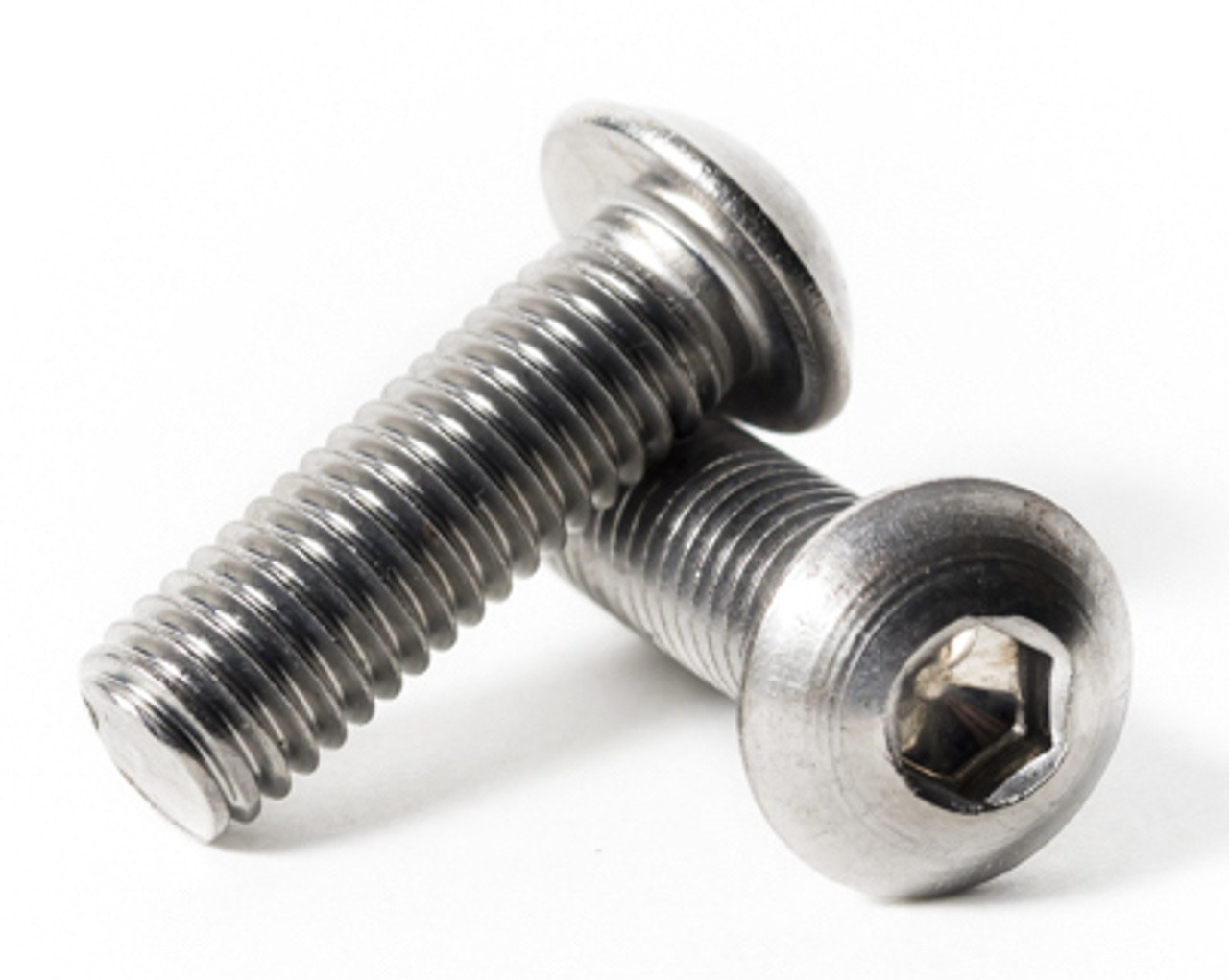

Stainless Metric Button Head Socket Cap Screws
Stainless Metric Button Head Socket Cap Screws
A2 Stailess Steel
ISO 7380 (Full Thread)
|
Diameter |
Thread Pitch |
Head Thickness |
Key Size |
Head Diameter |
Full Thread |
|
d (mm) |
P |
k (mm) |
S (mm) |
d2(mm) |
L = |
|
M3 |
0.5 |
1.65 |
2 |
5.7 |
12 |
|
M4 |
0.07 |
2.2 |
2.5 |
7.6 |
16 |
|
M5 |
0.8 |
2.75 |
3 |
9.5 |
30 |
|
M6 |
1 |
3.3 |
4 |
10.5 |
30 |
|
M8 |
1.25 |
4.4 |
5 |
14 |
40 |
|
M10 |
1.5 |
5.5 |
6 |
17.5 |
40 |
|
M12 |
1.75 |
6.6 |
8 |
21 |
50 |
|
M16 |
2 |
8.8 |
10 |
28 |
45 |
