Stainless Steel EZ-Lok Thread Repair Inserts

Stainless Steel EZ-Lok Thread Repair Inserts


Installation

E-Z LOK (Solid Wall) threaded inserts for metal are installed using standard tools. Simply drill the appropriately sized hole with a standard drill, tap the hole with a standard tap, and then turn in the E-Z LOK like an ordinary fastener with a screwdriver, bolt and jam nut, or an E-Z LOK drive tool. Installation is as easy as 1-2-3.

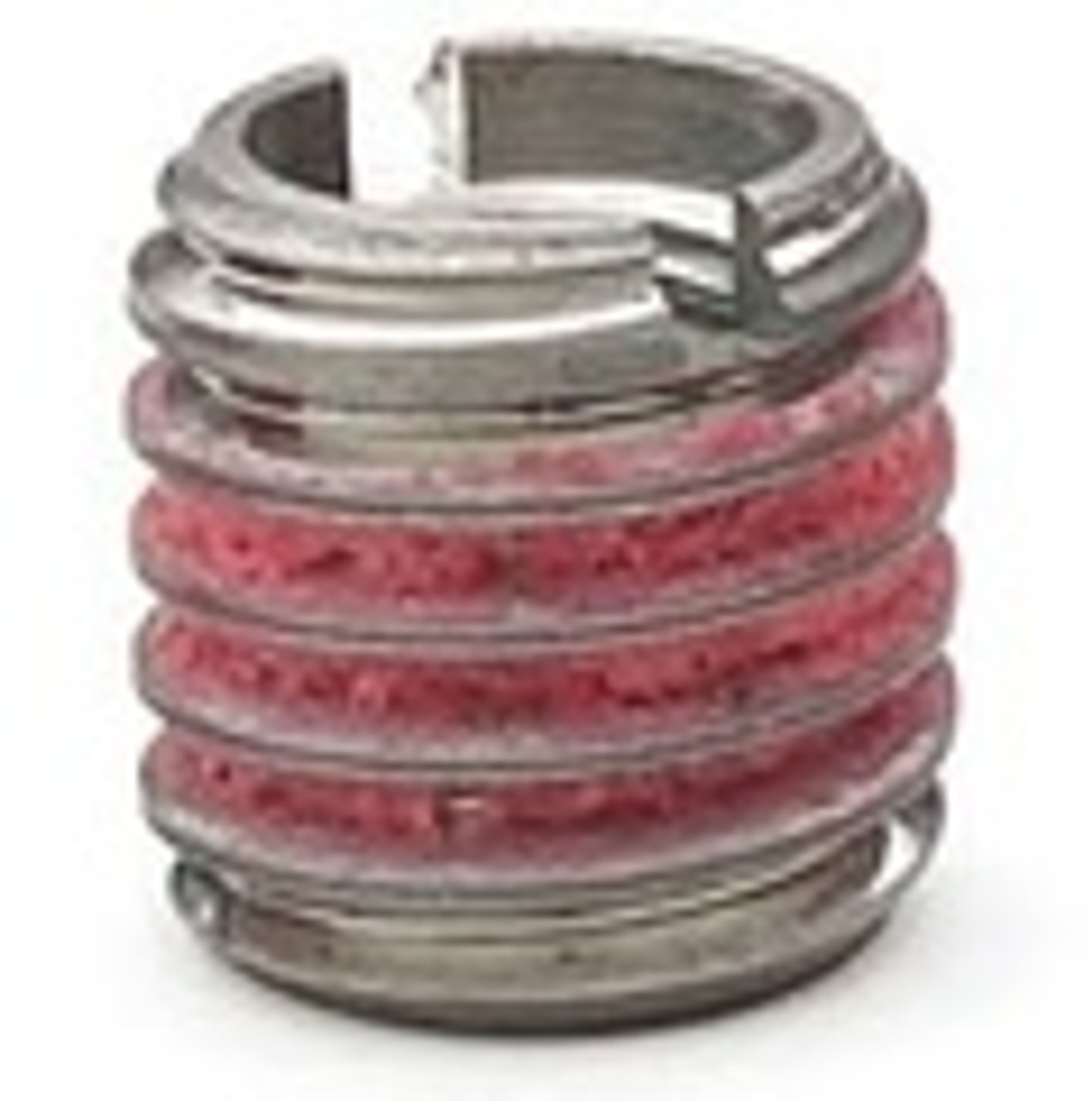

E-Z LOK inserts are self-locking. Immediately upon installation, pre-applied LOCTITE on the external threads begins to set and the newly installed insert is fastener ready in minutes. At full cure (72 hours), the LOCTITE seals against liquids and gases to pressures of 6,000 psi.


EZ-Lok Thread Repair Inserts – Stainless Steel

Stock #

Internal Thread

External Thread

Length

Drill Size

Tap Size

XEZ632

6-32

1/4-20

.280

7

1/4-20

XEZ832

8-32

5/16-18

.290

F

5/16-18

XEZ1024

10-24

3/8-16

.406

           5/16

3/8-16

XEZ1032

10-32

3/8-16

.406

           5/16

3/8-16

XEZ1420

1/4-20

7/16-14

.437

          23/64

7/16-14

XEZ51618

5/16-18

1/2-13

.484

          27/64

1/2-13

XEZ3816

3/8-16

9/16-12

.515

          31/64

9/16-12

XEZ1213

1/2-13

3/4-10

.656

          21/32

3/4-10
!
