Turnbuckles
Galvanized Hot Forges Turnbuckle Sizes & Specifications
|
Size
|
|
Working Load Limit (lbs) |
|
|
|
|

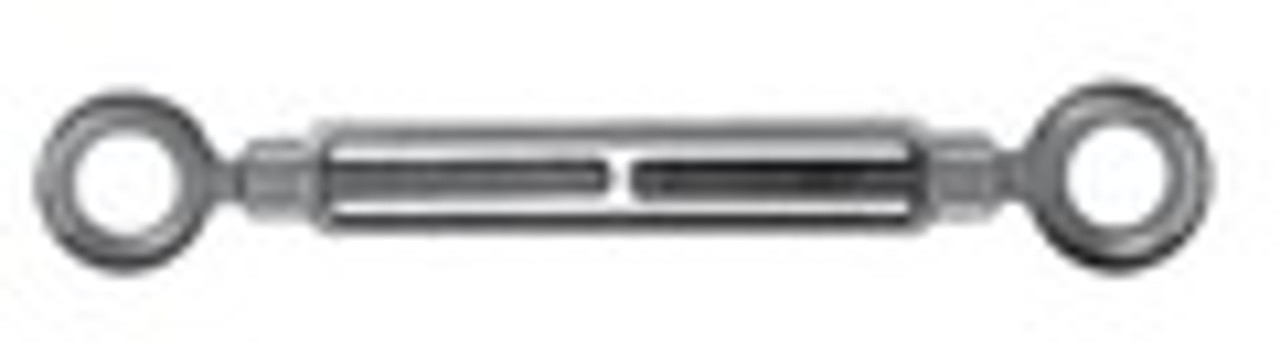

Eye/Eye |
|
|
Overall Length |
Hook/Hook |

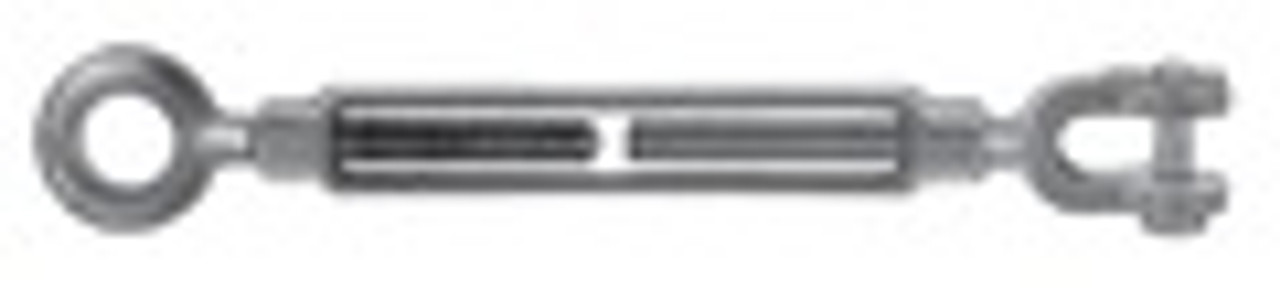

Jaw/Eye |
|
|
Ends Closed |

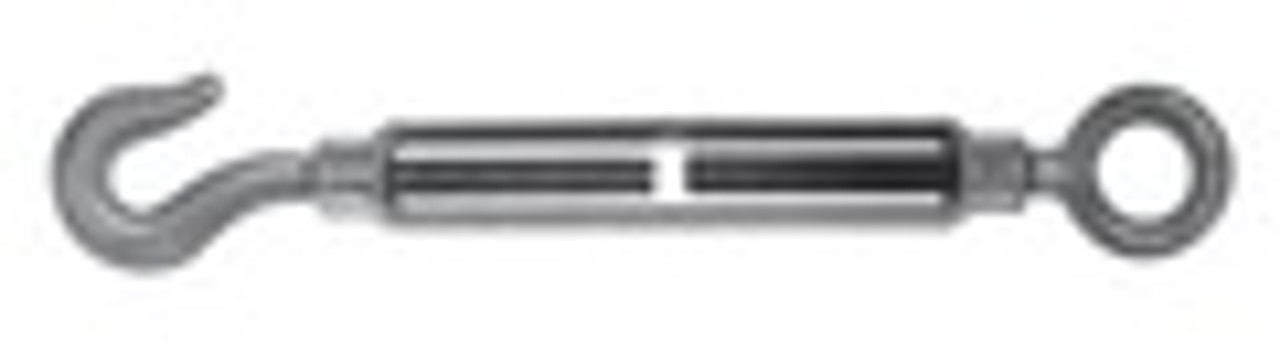

Hook/Eye |

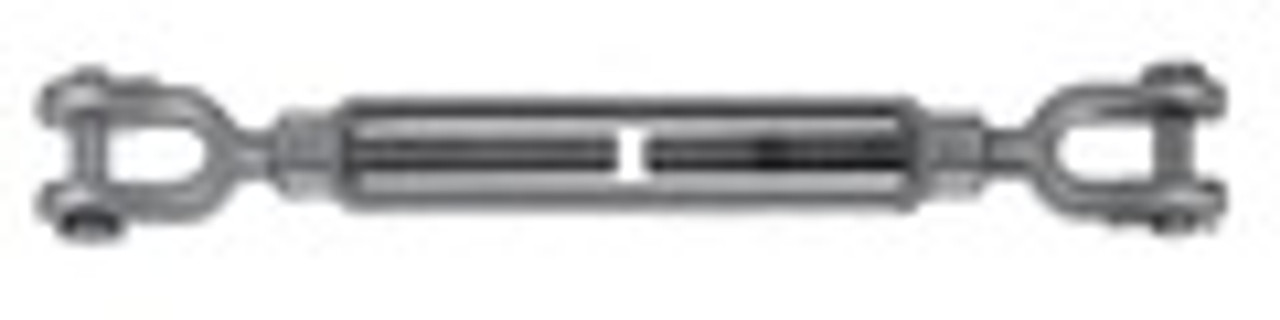

Jaw/Jaw |
|
|
1/4"X 4" |
8-1/4" |
300 |
500 |
|
5/16"X 4-1/2" |
9-9/16" |
500 |
800 |
|
3/8"X 6" |
11-7/8" |
700 |
1,200 |
|
1/2"X 6" |
13-5/16" |
1,040 |
2,200 |
|
1/2"X 9" |
16-5/16" |
1,040 |
2,200 |
|
1/2"X 12" |
19-5/16" |
1,040 |
2,200 |
|
5/8"X 6" |
15-1/2" |
1,600 |
3,500 |
|
5/8"X 9" |
18-1/2" |
1,600 |
3,500 |
|
5/8"X 12" |
21-1/2" |
1,600 |
3,500 |
|
3/4"X 6" |
17" |
2,000 |
5,200 |
|
3/4"X 9" |
20" |
2,000 |
5,200 |
|
3/4"X 12" |
23" |
2,000 |
5,200 |
|
3/4"X 18" |
29" |
2,000 |
5,200 |
|
7/8"X 12" |
25-1/4" |
2,400 |
7,200 |
|
7/8"X 18" |
31" |
2,400 |
7,200 |
|
1"X 6" |
20-5/8" |
2,900 |
10,000 |
|
1"X 12" |
26-5/8" |
2,900 |
10,000 |
|
1"X 18" |
32-5/8" |
2,900 |
10,000 |
|
1"X 24" |
38-5/8" |
2,900 |
10,000 |
|
1-1/4"X 12" |
30" |
4,600 |
15,200 |
|
1-1/4"X 18" |
36" |
4,600 |
15,200 |
|
1-1/4"X 24" |
42" |
4,600 |
15,200 |
