Drop Forged, Hot Dipped Galvanized
To Federal Specification FF-T791, Type 1, Form 1, Class 7 & ASTM F-1145

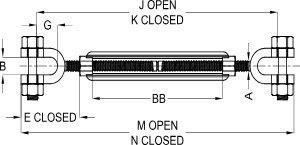

Galvanized Jaw & Jaw Turnbuckle
Jaws and jaw turnbuckles are used to adjust the length and tension of wire rope, cable and tie rods. This combination is commonly used for:
- Straight pull inline applications
- Tension systems
- Marine and outdoor applications
- Suspension bridges or buildings
- Aircraft construction
Both the jaw and jaw turnbuckle are drop forged into molds to create a strong, continuous piece of metal. They are then hot-dipped galvanized for a protective layer that prevents corrosion and rust from forming.
|
Size |
Working Load (in) |
Thread Diameter A (in) |
B Closed (in) |
E (in) |
G Open (in) |
J Closed (in) |
K Open (in) |
M Closed (in) |
N (in) |
BB (in) |
Part No. |
|
1/4×4 |
500 |
0.25 |
0.45 |
1.58 |
0.62 |
10.9 |
6.9 |
11.9 |
7.9 |
4 |
GTBJJ144 |
|
5/16×4-1/2 |
800 |
0.31 |
0.5 |
1.98 |
0.87 |
12.36 |
8.36 |
13.9 |
9.4 |
4.5 |
GTBJJ516412 |
|
3/8×6 |
1,200 |
0.38 |
0.54 |
2.12 |
0.87 |
16.14 |
10.14 |
17.38 |
11.38 |
6 |
GTBJJ386 |
|
1/2×6 |
2,200 |
0.5 |
0.68 |
2.75 |
1.06 |
17.5 |
11.5 |
19 |
13 |
6 |
GTBJJ126 |
|
1/2X9 |
2,200 |
0.5 |
0.68 |
2.75 |
1.06 |
23.5 |
14.5 |
25 |
16 |
9 |
GTBJJ129 |
|
1/2×12 |
2,200 |
0.5 |
0.68 |
2.75 |
1.06 |
29.5 |
17.5 |
31 |
19 |
12 |
GTBJJ1212 |
|
5/8×6 |
3,500 |
0.63 |
0.82 |
3.5 |
1.31 |
18.8 |
12.8 |
20.88 |
14.88 |
6 |
GTBJJ586 |
|
5/8X9 |
3,500 |
0.63 |
0.82 |
3.5 |
1.31 |
24.8 |
15.8 |
26.88 |
17.88 |
9 |
GTBJJ589 |
|
5/8×12 |
3,500 |
0.63 |
0.82 |
3.5 |
1.31 |
30.8 |
18.8 |
32.88 |
20.88 |
12 |
GTBJJ5812 |
|
3/4×6 |
5,200 |
0.75 |
1.03 |
4.18 |
1.5 |
20 |
14 |
22.6 |
16.6 |
6 |
GTBJJ346 |
|
3/4X9 |
5,200 |
0.75 |
1.03 |
4.18 |
1.5 |
26 |
17 |
28.6 |
19.6 |
9 |
GTBVJJ349 |
|
3/4×12 |
5,200 |
0.75 |
1.03 |
4.18 |
1.5 |
32 |
20 |
34.6 |
22.6 |
12 |
GTBJJ3412 |
|
3/4×18 |
5,200 |
0.75 |
1.03 |
4.18 |
1.5 |
44 |
26 |
46.6 |
28.6 |
18 |
GTBJJ3418 |
|
7/8×12 |
7,200 |
0.88 |
1.23 |
4.85 |
1.75 |
33.36 |
21.36 |
36.32 |
24.32 |
12 |
GTBJJ7812 |
|
7/8X18 |
7,200 |
0.88 |
1.23 |
4.85 |
1.75 |
45.36 |
27.36 |
48.32 |
30.32 |
18 |
GTBJJ7818 |
|
1X6 |
10,000 |
1 |
1.31 |
5.53 |
2.06 |
22.72 |
16.72 |
26.06 |
20.06 |
6 |
GTBJJ16 |
|
1×12 |
10,000 |
1 |
1.31 |
5.53 |
2.06 |
34.72 |
22.72 |
38.06 |
26.06 |
12 |
GTBJJ112 |
|
1X18 |
10,000 |
1 |
1.31 |
5.53 |
2.06 |
46.72 |
28.72 |
50.06 |
32.06 |
18 |
GTBJJ118 |
|
1X24 |
10,000 |
1 |
1.31 |
5.53 |
2.06 |
58.72 |
34.72 |
62.06 |
38.06 |
24 |
GTBJJ124 |
|
1-1/4X12 |
15,200 |
1.25 |
1.86 |
7.21 |
2.81 |
37.34 |
25.34 |
41.54 |
29.54 |
12 |
GTBJJ11412 |
|
1-1/4×18 |
15,200 |
1.25 |
1.86 |
7.21 |
2.81 |
49.34 |
31.34 |
53.54 |
35.54 |
18 |
GTBJJ11418 |
|
1-1/4×24 |
15,200 |
1.25 |
1.86 |
7.21 |
2.81 |
61.34 |
37.34 |
65.54 |
41.54 |
24 |
GTBVJJ11424 |
|
1-1/2×12 |
21,400 |
1.5 |
2.25 |
7.88 |
2.81 |
38.5 |
26.5 |
43.5 |
31.5 |
12 |
GTBJJ11212 |
|
1-1/2×18 |
21,400 |
1.5 |
2.25 |
7.88 |
2.81 |
50.5 |
32.5 |
55.5 |
37.5 |
18 |
GTBJJ11218 |
|
1-1/2×24 |
21,400 |
1.5 |
2.25 |
7.88 |
2.81 |
62.5 |
38.5 |
67.5 |
43.5 |
24 |
GTBJJ11224 |
|
1-3/4×18 |
28,000 |
1.75 |
2.6 |
9.4 |
3.38 |
53.38 |
35.38 |
59.18 |
41.18 |
18 |
GTBJJ13418 |
|
1- 3/4×24 |
28,000 |
1.75 |
2.6 |
9.4 |
3.38 |
65.38 |
41.38 |
71.18 |
47.18 |
24 |
GTBJJ13424 |
|
2×24 |
37,000 |
2 |
2.62 |
11.86 |
3.69 |
69.54 |
45.54 |
76.72 |
52.72 |
24 |
GTBJJ224 |
|
2-1/2×24 |
75,000 |
2.75 |
3.68 |
15.22 |
4.19 |
74.75 |
50.75 |
85.5 |
61.5 |
24 |
GTBJJ21224 |
