1/16 Galvanized Malleable Wire Rope Clip
SKU: WRC116
$0.400eachBulk Pricing Available
-
-
3/16 Galvanized Malleable Wire Rope Clip
SKU: WRC316
$0.290eachBulk Pricing Available
-
-
5/16 Galvanized Malleable Wire Rope Clip
SKU: WRC516
$0.490eachBulk Pricing Available
-
-
-
-
Wire Rope Clips
Electro Galvanized
To Federal Specification FF-C-450 Type 1, Class
Wire rope clips are clamps placed on the ends of rope wires to form a loop and prevent the rope from fraying. Wire rope clips may also be called:
U-Clip U-Clamp U-Bolt Wire rope clamp Cable clamp

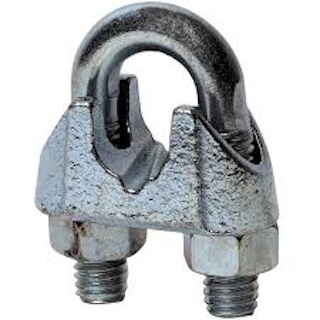

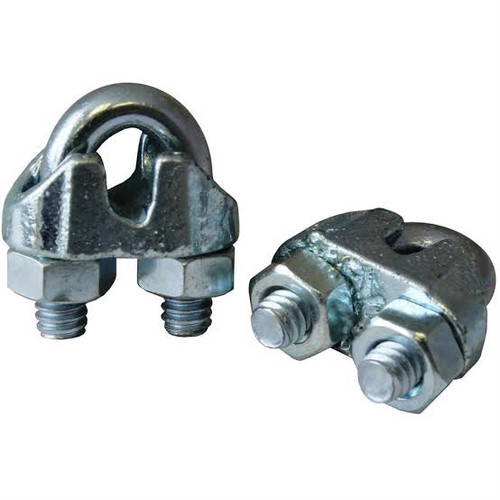

Malleable wire rope clips are best for light-duty and other general-purpose applications, such as guard rails, fencing, and other wire rope securements. The clip is made of malleable steel which forms a U-shaped bolt with two nuts and a saddle to hold the wire rope in place. This protects the wire rope from fraying and wear.
|
Size (In) |
A (in.) |
B (in.) |
C (in.) |
D (in.) |
E (in.) |
F (in.) |
G (in.) |
Part No. |
|
1/16 |
1/16 |
0.45 |
0.45 |
0.15 |
0.38 |
0.69 |
0.65 |
WRC116 |
|
1/8 |
1/8 |
0.55 |
0.55 |
0.18 |
0.42 |
0.87 |
0.79 |
WRC18 |
|
3/16 |
3/16 |
0.59 |
0.63 |
0.25 |
0.51 |
1.02 |
0.94 |
WRC316 |
|
1/4 |
1/4 |
0.73 |
0.79 |
0.31 |
0.59 |
1.25 |
1.24 |
WRC14 |
|
5/16 |
5/16 |
0.79 |
0.87 |
0.31 |
0.63 |
1.38 |
1.34 |
WRC516 |
|
3/8 |
3/8 |
0.87 |
1.06 |
0.38 |
0.87 |
1.59 |
1.65 |
WRC38 |
|
7/16 |
7/16 |
0.91 |
1.18 |
0.44 |
0.87 |
1.7 |
1.69 |
WRC716 |
|
1/2 |
1/2 |
1.02 |
1.38 |
0.44 |
0.92 |
1.93 |
2.12 |
WRC12 |
|
9/16 |
9/16 |
1.04 |
1.58 |
0.5 |
1.06 |
2.07 |
2.15 |
WRC916 |
|
5/8 |
5/8 |
1.12 |
1.58 |
0.5 |
1.1 |
2.26 |
2.33 |
WRC58 |
|
3/4 |
3/4 |
1.26 |
1.65 |
0.56 |
1.33 |
2.4 |
2.7 |
WRC34 |
|
7/8 |
7/8 |
1.46 |
1.81 |
0.63 |
1.5 |
2.8 |
3.08 |
WRC78 |
|
1 |
1 |
1.65 |
2.2 |
0.63 |
1.69 |
3.05 |
3.44 |
WRC1 |
|
1 1/8 |
1 1/8 |
2.06 |
2.75 |
0.75 |
2.19 |
3.38 |
4 |
WRC118 |
