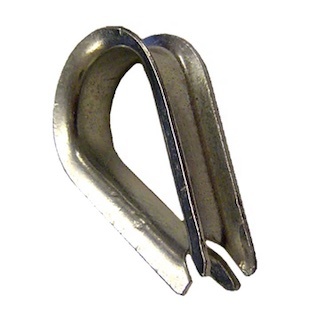

Wire Rope Thimbles
Hot Dipped Galvanized
To Federal Specification FF-T-276 Type 2
|
Size (in) |
A (in.) |
B (in.) |
C (in.) |
D (in.) |
E (in.) |
F (in.) |
Part No. |
|
1/8 |
1.90 |
1.1 |
1.37 |
0.71 |
0.28 |
0.05 |
WRT18 |
|
3/16 |
1.90 |
1.1 |
1.37 |
0.71 |
0.33 |
0.05 |
WRT316 |
|
1/4 |
1.90 |
1.1 |
1.37 |
0.71 |
0.37 |
0.05 |
WRT14 |
|
5/16 |
2.10 |
1.2 |
1.6 |
0.81 |
0.43 |
0.05 |
WRT516 |
|
3/8 |
2.32 |
1.45 |
1.7 |
0.94 |
0.55 |
0.06 |
WRT38 |
|
1/2 |
2.71 |
1.73 |
1.93 |
1.14 |
0.69 |
0.08 |
WRT12 |
|
5/8 |
3.39 |
2.36 |
2.24 |
1.45 |
0.92 |
0.11 |
WRT58 |
|
3/4 |
3.70 |
2.48 |
2.48 |
1.57 |
1.1 |
0.15 |
WRT34 |
|
7/8 |
4.89 |
3.42 |
3.54 |
2.2 |
1.32 |
0.15 |
WRT78 |
|
1 |
5.60 |
3.93 |
4.01 |
2.51 |
1.46 |
0.15 |
WRT1 |
